Features
- High-speed weighing with 1-second stabilization

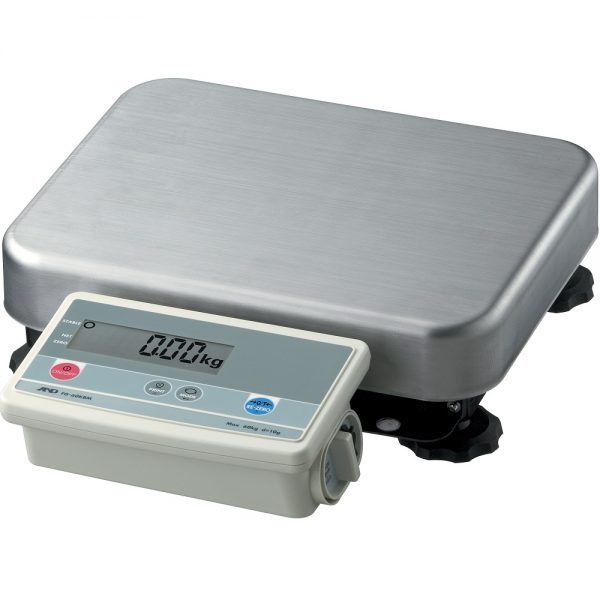

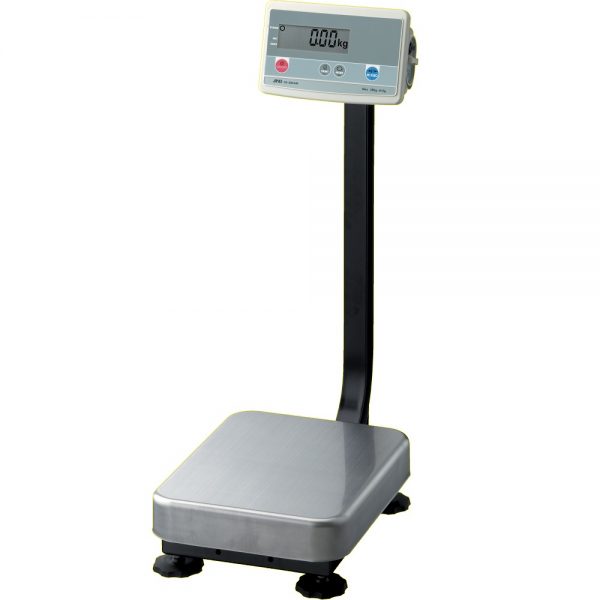

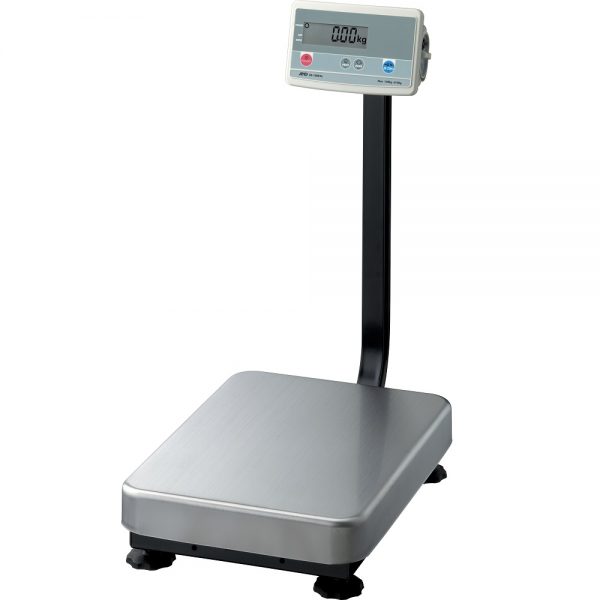

- Display unit either on a column (FG-KAM/KAL) or attached directly to the platform (FG-KBM)
- Washable and hygienic stainless steel weighing pan in two sizes
- Three selectable weighing resolutions
- Counting mode function
- Comparator function
- Two types of power supply: AC adapter or normal batteries
- Auto power off function

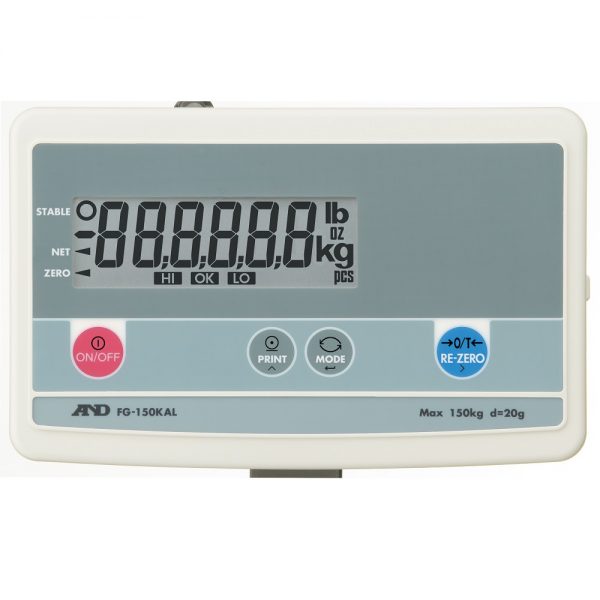

- Status indicators (stable, zero, and net)
- Adjustable response characteristics
- Adjustable display angle
- Detachable display unit
External Input/Output
- RS-232C interface (optional)
- Comparator relay output (optional)
Options
- FG-23 : RS-232C interface
- FG-24 : RS-232C + comparator relay output
- HVW-02G : Extension cable (5 m)
- HVW-12C : Printer support for the AD-8127 PDF
- Manual (PDF 224KB)
* FG-23 and FG-24 cannot be used at the same time.
Accessories
- AD-1688 : Weighing data logger**
- AD-8118C : Universal printer
- AD-8127 : Compact printer
- AD-8526 : Serial/Ethernet converter
- AD-8527 : Quick USB adapter**
- AD-8920A : Remote display
- AD-8922A : Remote controller
- AX-USB-DIN : Serial/USB converter with cable
- AX-KO1786-200 : RS-232C cable (9P-DIN)
- AX-3007527-5S : Protective cover (5 pcs)
** Cannot be used while running on batteries.
