Features
- Ultimate protection against the effects of condensation as well as water – both IP69K and IP68 compliant
- Streamlined construction for easy cleaning of food processing residues
- Stainless steel weighing pan, frame and load cell*
- Rugged and adjustable (0º, 30º, 60º or 90º) indicator bracket
- Touch sensitive capacitive keys to prevent damage from sharp objects
- Auto-tare function to facilitate consecutive check weighing
- Counting mode function
- Bright, multicolored LED display with 5-step comparator lamps
- Auto power off function
- Three sizes of base units, which are also available separately

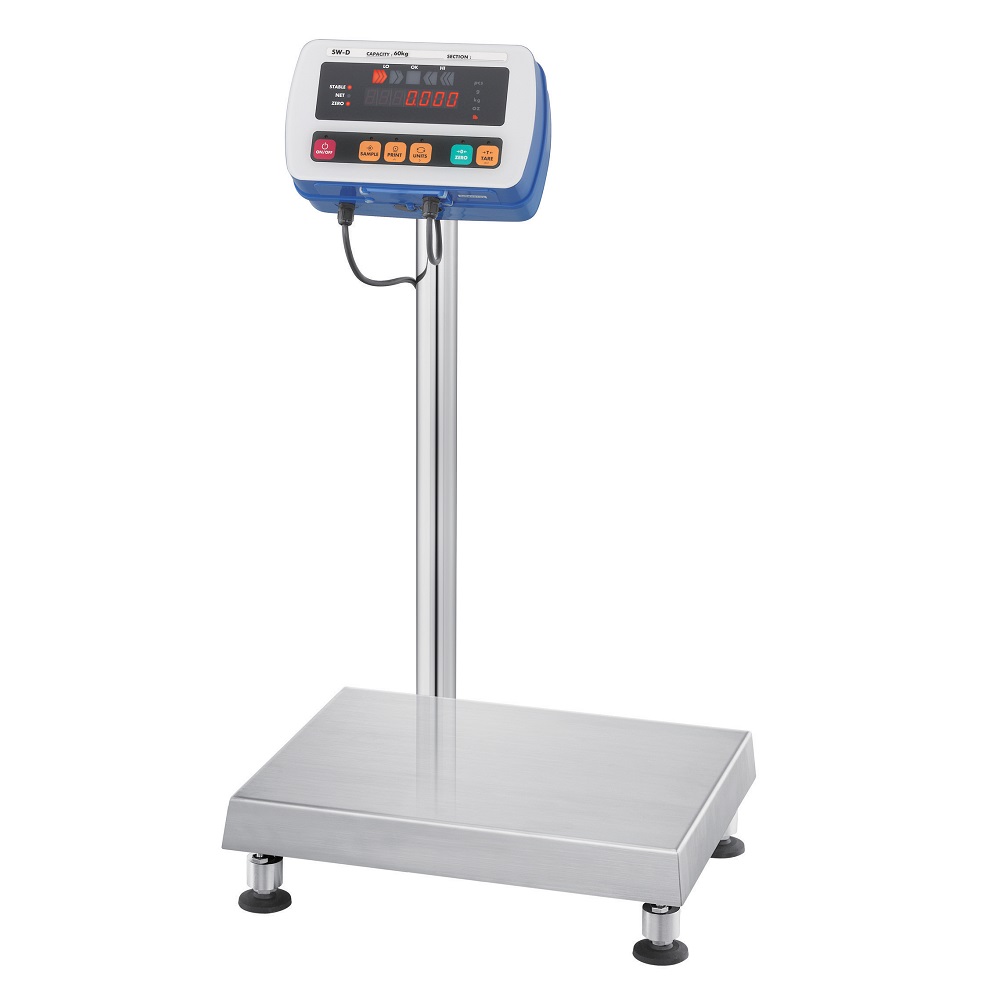

- Pole stand attachable to either the short or long side of the platform
- The display unit available separetely as an IP69K indicator for high pressure washdown
External Input/Output
- RS-232C + comparator relay output (optional)
- RS-422/485 interface (optional)
Options
- HC-02i : Sealed lead acid rechargeable battery (6 V, 4 Ah)
- SW-03 : RS-232C + comparator relay output
- SW-04 : RS-422/485 interface
- SW-09 : Short pole stand (for SW-6KS/15KS only)
- SW-10 : Long pole stand
- SW-11 : Desktop/wall-mount stand
** SW-03 and SW-04 cannot be used at the same time.
*** SW series is not IP69K compliant with SW-03 or SW-04.
Specifications
| | | |
|---|
| Model | Capacity | Resolution | Pan Size (mm) W x D |
| SW-6KS | 6 kg | 0.002 / 0.001*** / 0.0005 kg | 250 x 250 |
| SW-15KS | 15 kg | 0.005 / 0.002*** / 0.001 kg | |
| SW-15KM | 15 kg | 0.005 / 0.002*** / 0.001 kg | 300 x 380 |
| SW-30KM | 30 kg | 0.01 / 0.005*** / 0.002 kg | |
| SW-60KM | 60 kg | 0.02 / 0.01*** / 0.005 kg | |
| SW-150KM | 150 kg | 0.05 / 0.02*** / 0.01 kg | |
| SW-60KL | 60 kg | 0.02 / 0.01*** / 0.005 kg | 390 x 530 |
| SW-150KL | 150 kg | 0.05 / 0.02*** / 0.01 kg | |
**** g, oz, lb and lb-oz also available (g not available for SW-60K/150K)
| | | |
|---|
| Model | Capacity | Pan Size (mm) W x D | Mass (approximate) |
| SB-6K13SW | 6 kg | 250 x 250 | 3.7 kg |
| SB-15K13SW | 15 kg | | |
| SB-15K14SW | 15 kg | 300 x 380 | 8.2 kg |
| SB-30K14SW | 30 kg | | |
| SB-60K14SW | 60 kg | | |
| SB-150K14SW | 150 kg | | |
| SB-60K15SW | 60 kg | 390 x 530 | 11.2 kg |
| SB-150K15SW | 150 kg | | |
Specifications (SW-D)
| |
|---|
| Input sensitivity | 0.2 µV / d (d: minimum division) |
| Input signal range | −16 mV to 16 mV |
| Load cell excitation voltage | DC 5V ± 5% (no remote sensing) |
| Load cell drive capacity | Up to four 350 Ω load cells |
| Temperature coefficient | Zero: ±(0.2 µV ± 0.001% of zero adjustment voltage) / °C (typ.) |
| Span: ±0.001% / °C of reading (typ.) |
| Linearity | ±0.01% of full scale |
| Maximum display resolution | 60000 |
