Features
- Low profile and lightweight for easy mounting
- For both tension and compression usage
- Moisture proof
- Can be used for multi-point weighing
LC-5223 (Tool Steel)
Multipurpose Load Cells
For Low Profile Platform Scales, Hopper Scales and More
| Capacity | Model No. |
| 500kgf | LC5223-K500 |
| 1tf | LC5223-T001 |
| 1.5tf | LC5223-T1.5 |
| 2tf | LC5223-T002 |
| 3tf | LC5223-T003 |
| 5tf | LC5223-T005 |
Drawing
Specifications
| Rated capacities | 500kgf, 1tf, 1.5tf, 2tf, 3tf, 5tf |
| Rated output | 2mV/V±0.2% |
| Maximum safe overload | 150% of rated capacity |
| Combined error | ± 0.03% of rated output |
| Zero balance | ±1% of rated output |
| Compensated temperature range | -10°C~+60°C/+14°F~+140°F |
| Recommended excitation voltage | 5~12V |
| Maximum excitation voltage | 15V |
| Input terminal resistance | Approximately 400Ω |
| Output terminal resistance | 350Ω±3.5Ω |
| Insulation resistance | Greater than 5000MOat DC50V |
| Temperature effect Zero | 0.007% of rated output/°C |
| Span | 0.002% of rated output/°CTyp. |
| Cable length | 3m/118 inches |
Related products
-
LC-1205 (Tool Steel)
Multipurpose Load Cells
For General Purpose Tension, Compression Measuring
Capacity Model No. 20kgf LC1205-K020 50kgf LC1205-K050 100kgf LC1205-K100 200kgf LC1205-K200 500kgf LC1205-K500 1tf LC1205-T001A 2tf LC1205-T002 5tf LC1205-T005
Drawing
-
LCM13

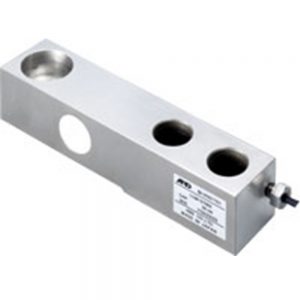

Stainless Steel Load Cells
Stainless steel body construction protection from water, moisture and corrosion
Capacity Model No. CAD File 1kN(102kgf) LCM13K100 CAD Download 2kN(204kgf) LCM13K200 3kN(306kgf) LCM13K300 5kN(500kgf) LCM13K500 CAD Download 10kN(1tf) LCM13T001 20kN(2tf) LCM13T002 30kN(3tf) LCM13T003 50kN(5tf) LCM13T005
Brochure | Drawing
-
LCB05

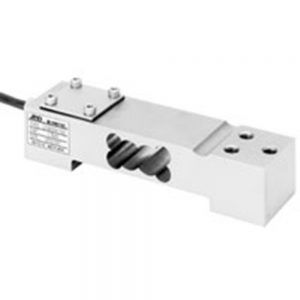

Stainless Steel Load Cells
Stainless Steel Hermetical Sealed Structure Ideal for Application Under Harsh Environment
Capacity Model No. CAD File 30kgf LCB05K030 CAD Download 60kgf LCB05K060 150kgf LCB05K150 CAD Download
Brochure | Drawing
-
LCM17 Series

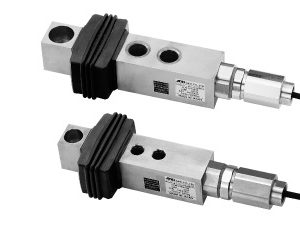

Flameproof Enclosure Stainless Steel Beam Load Cells for Platform, Tank or Hopper Scales
