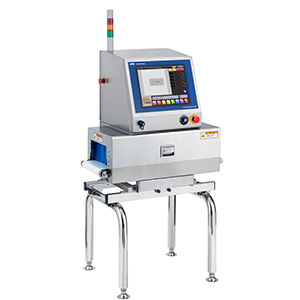

AD-4991 Series

X-ray Inspection Systems

With its compact design, and cutting-edge X-ray technology, the ProteX Series X-ray inspection system provides next level quality assurance.



  • Most compact system on the market.
  • Simple GUI with a 15” color touchscreen provides for easy operation
  • Quick and stable product setup



BrochureUser’s Handbook

Category:

Features

  • Most compact system on the market.
  • Simple GUI with a 15” color touchscreen provides for easy operation
  • Quick and stable product setup
  • Comes standard with contaminant detection, shape, counting, positioning and mass estimation inspections capabilities.
  • Suitable for use in HACCP program
  • Easy cleaning and replacment with quick release belt and curtains
  • Stainless and sloped surfaces minimize water collection and maximize cleanability.
  • Safety sensors are embedded at access points to provide additional safeguards against X-ray exposure.

Most Compact System on the market

The size of 575 mm width and 800 mm length makes integration painless whether it be an existing line or new production line.

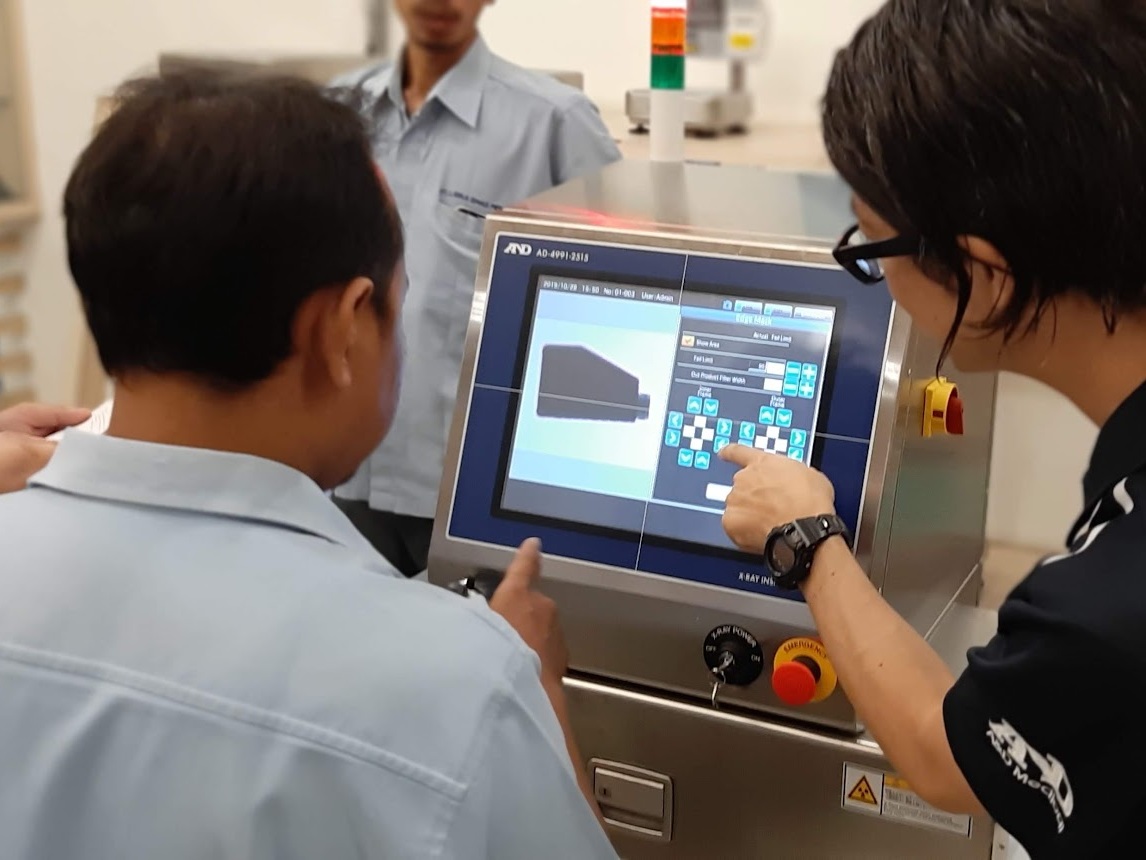

15″ Color Touchscreen for Easy Operation

  • Simple GUI for Operators of all types
  • Easy to discern good from bad products

Monitoring parameters                                Shape detection

Choosing an inspection item



Easy Product Setup

Not only contaminant detection, but product integrity inspection such as shape, counting, positioning and mass estimation come as standard
Shape inspection                Counting inspection                                   Positioning inspection                                                     Mass estimation inspection

Data Management and HACCP Compliance

Export production reports, statistics, and image via USB or access on the machine in real-time.                                        Rejects Log                                                                Production Charts                                           Inspection Summary

Sanitary Design

Sloped surface are designed to minimize water collection and maximize cleanability Quick release belt designed for easy cleaning and replacement Quick release curtains allows for easycleaning and replacemet

X-ray Safety

Safety sensors are embedded at accesspoints to provide additional safety.

Machine Faults are visually displayedallowing operators to quickly fix and resume operation.

Specifications

*1 The cable doesn’t come as standard. *2 The maximum power consumption when a rejector is connected. *3 8points can be added with an option.
