Features
- Stainless steel body is ideal protection from corrosion(IP67)
- Low profile and lightweight for easy mounting
- Compact size.
- For both tension and compression usage
- Can be used for multi-point weighing

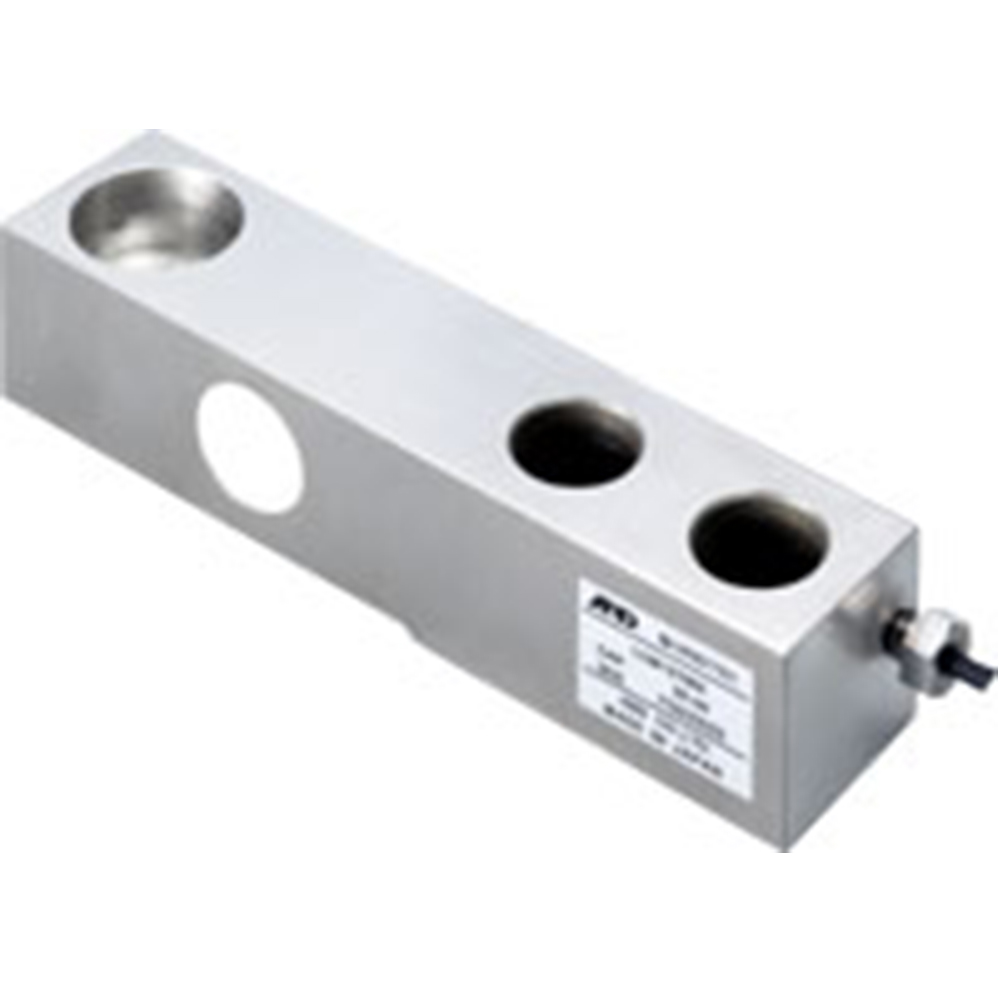

LCM13
Stainless Steel Load Cells
Stainless steel body construction protection from water, moisture and corrosion
| Capacity | Model No. | CAD File |
| 1kN(102kgf) | LCM13K100 | CAD Download |
| 2kN(204kgf) | LCM13K200 | |
| 3kN(306kgf) | LCM13K300 | |
| 5kN(500kgf) | LCM13K500 | CAD Download |
| 10kN(1tf) | LCM13T001 | |
| 20kN(2tf) | LCM13T002 | |
| 30kN(3tf) | LCM13T003 | |
| 50kN(5tf) | LCM13T005 |
Brochure |
Drawing
Accessories
- Swivel Foot LCZAFT01S
Specifications
| Rated capacities | 1kN(102kgf) | |
| 2kN(204kgf) | ||
| 3kN(306kgf) | ||
| 5kN(500kgf) | ||
| 10kN(1tf) | ||
| 20kN(2tf) | ||
| 30kN(3tf) | ||
| 50kN(5tf) | ||
| Rated output | 2mV/V±0.1% | |
| Maximum safe overload | 150% of rated capacity | |
| Combined error | ± 0.03% of rated output | |
| Zero balance | 1% of rated output | |
| Operating temperature | -15°C~ 60°C | |
| Compensated temperature range | -10°C~40° | |
| Recommended excitation voltage | 5-12V | |
| Maximum excitation voltage | 15V | |
| Input terminal resistance | Approximately 380Ω±20Ω | |
| Output terminal resistance | 350Ω±3.5Ω | |
| Insulation resistance | Greater than 5,000MΩ at DC50V | |
| Temperature effect | Zero | 0.016% R.O./10°CTyp. |
| Span | 0.013% Load/10°CTyp. | |
| Cable length | 3m/118 inches | |
| Dust & Waterproof | IP67 |
