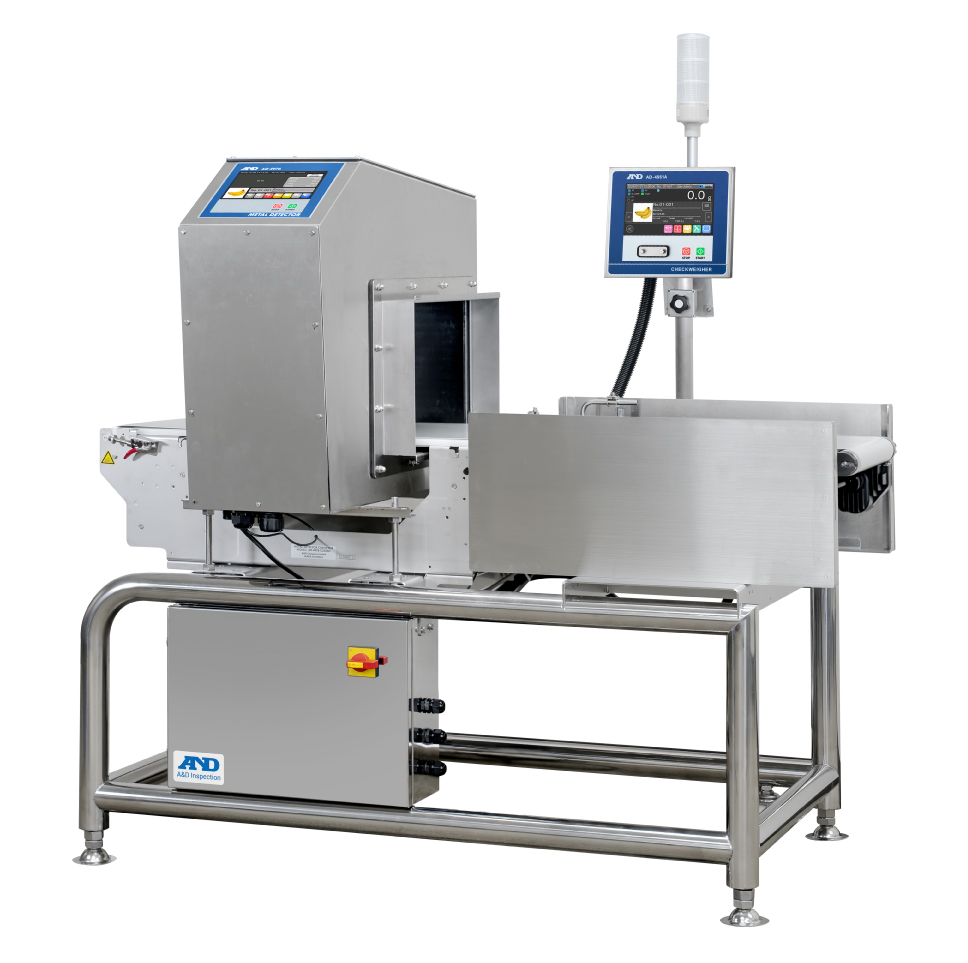

WCM-62 Series is a combination system of a Metal Detector and Checkweigher, suitable for use in a variety of industries.
It enables simultaneous inspection for metal contaminants and checkweighing, contributing to reduced inspection time. Additionally, it allows both inspections to be performed in a space-saving design.
The system incorporates the same functions as the AD-4961A Series and AD-4976 Series.
| Model | Capacity | Max. product width | Product length | Max. pass-height |
| WCM-62-6000824+H3510-C2508 | 600 g | 80 mm | 37 - 200 mm | 80 mm |
| WCM-62-6000824+H3517-C2508 | 600 g | 80 mm | 37 - 200 mm | 150 mm |
| WCM-62-6000824+H3525-C2508 | 600 g | 80 mm | 37 - 200 mm | 230 mm |
| WCM-62-6001224+H3510-C2508 | 600 g | 120 mm | 37 - 200 mm | 80 mm |
| WCM-62-6001224+H3517-C2508 | 600 g | 120 mm | 37 - 200 mm | 150 mm |
| WCM-62-6001224+H3525-C2508 | 600 g | 120 mm | 37 - 200 mm | 230 mm |
| WCM-62-2KD1224+H3510-C2508 | 500 g / 2000 g | 120 mm | 37 - 200 mm | 80 mm |
| WCM-62-2KD1224+H3517-C2508 | 500 g / 2000 g | 120 mm | 37 - 200 mm | 150 mm |
| WCM-62-2KD1224+H3525-C2508 | 500 g / 2000 g | 120 mm | 37 - 200 mm | 230 mm |
| WCM-62-2KD2035+H3510-C2508 | 500 g / 2000 g | 200 mm | 37 - 300 mm | 80 mm |
| WCM-62-2KD2035+H3517-C2508 | 500 g / 2000 g | 200 mm | 37 - 300 mm | 150 mm |
| WCM-62-2KD2035+H3525-C2508 | 500 g / 2000 g | 200 mm | 37 - 300 mm | 230 mm |
| WCM-62-6K2035＋H3510-C2508 | 6000 g | 200 mm | 37 - 300 mm | 80 mm |
| WCM-62-6K2035＋H3517-C2508 | 6000 g | 200 mm | 37 - 300 mm | 150 mm |
| WCM-62-6K2035＋H3525-C2508 | 6000 g | 200 mm | 37 - 300 mm | 230 mm |
| WCM-62-6K3050＋H3510-C2508 | 6000 g | 300 mm | 80 - 450 mm | 80 mm |
| WCM-62-6K3050＋H3517-C2508 | 6000 g | 300 mm | 80 - 450 mm | 150 mm |
| WCM-62-6K3050＋H3525-C2508 | 6000 g | 300 mm | 80 - 450 mm | 230 mm |
| WCM-62-6K3050＋H4517-C3508 | 6000 g | 300 mm | 80 - 450 mm | 150 mm |
| WCM-62-6K3050＋H4525-C3508 | 6000 g | 300 mm | 80 - 450 mm | 230 mm |
| Model | WCM-62-600 | WCM-62-2KD | WCM-62-6K2035 | WCM-62-6K3050 | ||
| 0824 | 1224 | 1224 | 2035 | |||
| Capacity | 600 g | 500 g / 2,000 g | 6,000 g | 6,000 g | ||
| Resolution | 0.01 g | 0.01 g / 0.1 g | 0.1 g | 0.1 g | ||
| Accuracy (3δ) *1 | 0.08 g | 0.08 g / 0.18 g | 1.0 g | 1.0 g | ||
| Max. throughput *1 | 277 pcs/min | 277 pcs/min | 190 pcs/min | 190 pcs/min | 133 pcs/min | |
| Conveyor belt width *2 | 80 mm | 120 mm | 120 mm | 200 mm | 200 mm | 300 mm |
| Conveyor length *2 | 240 mm | 240 mm | 350 mm | 350 mm | 500 mm | |
| Conveyer speed | 15 ~ 50 m/min (20 ~ 80 m/min)*3 | |||||
| Dust/waterproof | Equivalent to IP65 | |||||
| Material | Weighing unit: Stainless steel and PC/ABS resin, Display: ABS resin | |||||
| Conveyor unit: Aluminum (alumite coating) and stainless steel | ||||||
| Control unit: Stainless steel, PP resin and PE resin, Base unit: Stainless steel | ||||||
| External Input/outout *4 | Input: Non-voltage contact input 5 points. | |||||
| Output: Relay output 7 points. |
| Model | H3510-C2508 | H3517-C2508 | H3525-C2508 | H4517-C3508 | H4525-C3508 |
| Maximum pass height | 80 mm | 150 mm | 230 mm | 150 mm | 230 mm |
| Aperture width | 350 mm | 450 mm | |||
| Material | SUS304 | ||||
| External Input/outout | Input: Non-voltage contact input 3 points. | ||||
| Output: Relay output 2 points, Open-collector output 1 point | |||||
| Dust/waterproof | Equivalent to IP66 |
| Display | LCD color display with 7 inch touchscreen | ||||
| Operation method | Touchscreen (resistive film type) and operation buttons | ||||
| Number of registrable products | 1,000 products (10 groups x 100 products) | ||||
| Communication functions | RS-232C or RS-485 (for Modbus RTU, barcode reader*5, PC, PLC, dot impact printer, etc.) | ||||
| IEEE 802.11b/g/n (Wireless LAN)*6 *7 | |||||
| 100BASE-T, Modbus TCP and PostScript compatible printer) | |||||
| USB (for USB flash drive [Data storage and image import use] *8 ) | |||||
| Operation temperature/humidity range | 0 to 40°C / humidity 85% or less (with no condensation) | ||||
| Power supply | Single phase AC 100 to 240 V (+10% / -15%), 50 / 60 Hzpower source should be connected to terminal.Power cable should be provided by the customer. |
AD-4976 consists of three modules: sensor head, conveyor, and frame unit. Each of these are also separately available for customization to meet various type of requirements. As a factory option, the sensor head is available in 90 degrees rotated position so that a tall product can be inspected.
Equipped with Modbus RTU/Modbus TCP as standard. With Modbus communication, seamless connection can be easily achieved. Operations such as stopping and starting weighing, collecting data and changing product can all be set from an external device.
