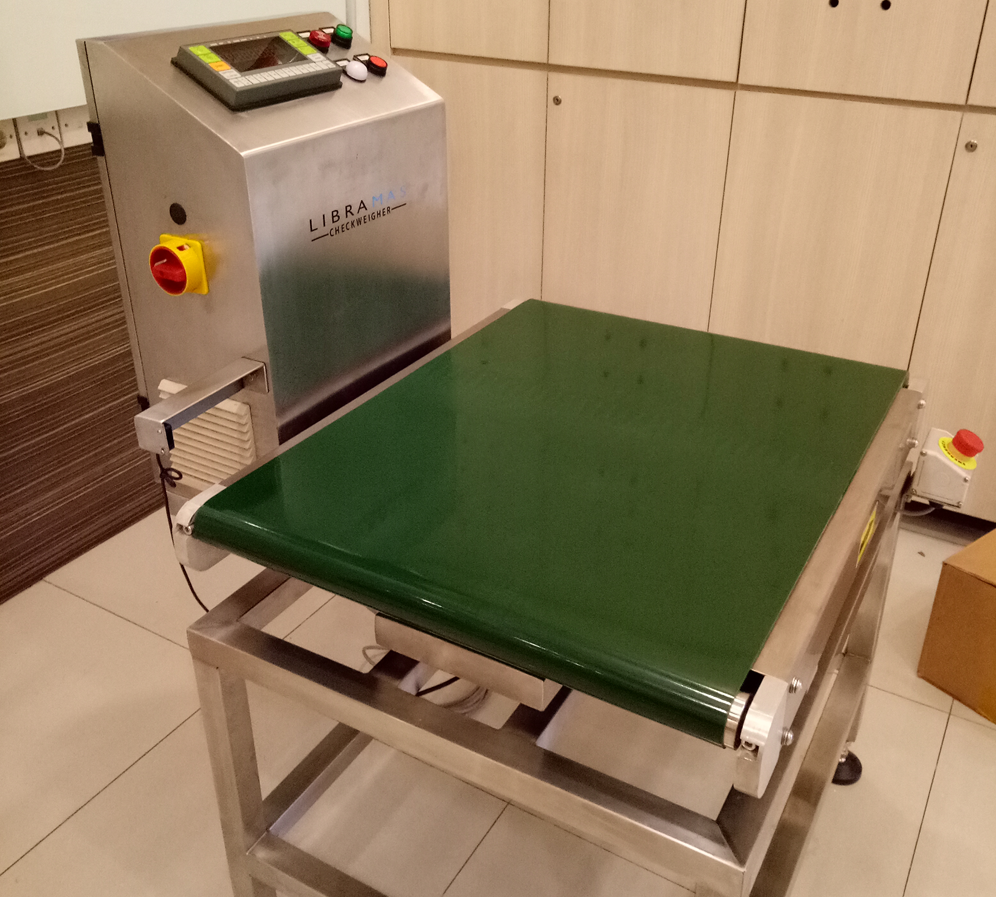

CW-R/B Series – Carton Box Checkweigher

Specifications


Model	Automated Simple Check Weighing				In Motion Check Weighing
	CW-R	CW-B	CW-R	CW-B	CW-R	CW-B	CW-R	CW-B
	4401A-010-2550		4401A-030-4060		4404-010-2550		4404-030-4060
Conveyor	Roller	Belt	Roller	Belt	Roller	Belt	Roller	Belt
Capacity & Resolution	10 kg x 5 g		30 kg x 10 g		10 kg x 5 g		30 kg x 10 g
Conveyor Dimension	(W) 250 mm x (L) 500 mm		(W) 400 mm x (L) 600 mm		(W) 250 mm x (L) 500 mm		(W) 400 mm x (L) 600 mm
Indicator	AD-4401A				AD-4404
Number of Recorded Iitem	-				100 (Items)
Max. Throughput	30 Pcs / Min
Structure	Stainless Steel
Control System	PLC System / Relay
Standart Accessories	Comparator Light & Buzzer
Operating Temperature	-5°C - 40°C (23°F - 104°F)
