| Capacity | Model No. |
| 300 kgf | LC4204-K300 |
| 600 kgf | LC4204-K600 |
Drawing
| Rated capacities | 300 kgf, 600 kgf | |
| Rated output | 1.5 mV/V±0.2% | |
| Maximum deadweight | 20% of rated capacity | |
| Maximum safe overload | 200% of rated capacity | |
| Combined error | ±0.015% of rated output | |
| Creep | ±0.05% of rated output/hour | |
| Zero balance | 20±5% of rated output | |
| Compensated temperature range | -10 °C to +40 °C (+14 °F to +104 °F) | |
| Recommended excitation voltage | 12 V | |
| Maximum excitation voltage | 15 V | |
| Input terminal resistance | Approximately 400 Ω | |
| Output terminal resistance | 350 Ω ± 5 Ω | |
| Insulation resistance | Greater than 5000 MΩ at DC50 V | |
| Temperature effect | Zero balance | 0.004% of rated output/°C |
| Span | 0.0014% of rated output/°C Typ. | |
| Platform size | 600 × 700 mm/23.6×27.6 inches (Single point) | |
| Cable length | 5 m/195 inches |
| Capacity | Model No. | CAD File |

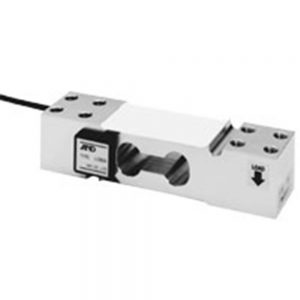

| LCB04M Series | ||
| 60kgf | LCB04K060M | CAD Download |
| 100kgf | LCB04K100M | |
| LCB04L Series | ||
| 150kgf | LCB04K150L | CAD Download |
| 250kgf | LCB04K250L |
Drawing
| Capacity | Model No. |
| 300kgf | LC5206-K300 |
| 500kgf | LC5206-K500 |
| 1tf | LC5206-T001 |
| 2tf | LC5206-T002 |
Drawing

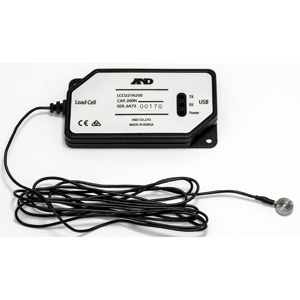

With one or more LCCU-21 Button Load Cells and a computer you can
easily perform a variety of measurements by downloading the compressed
WinCT-DLC file.
Brochure | Manual Book
LCCU-21 Simplified manual
LCCU-21 USB connection instruction manual
WinCT-DLC instruction manual
