Features
- Ultra Compact Design -Just 15cm in length
- Calibrated for 4 corner loads
- Moisture Proof
- 4 Models to Choose from
LCB04

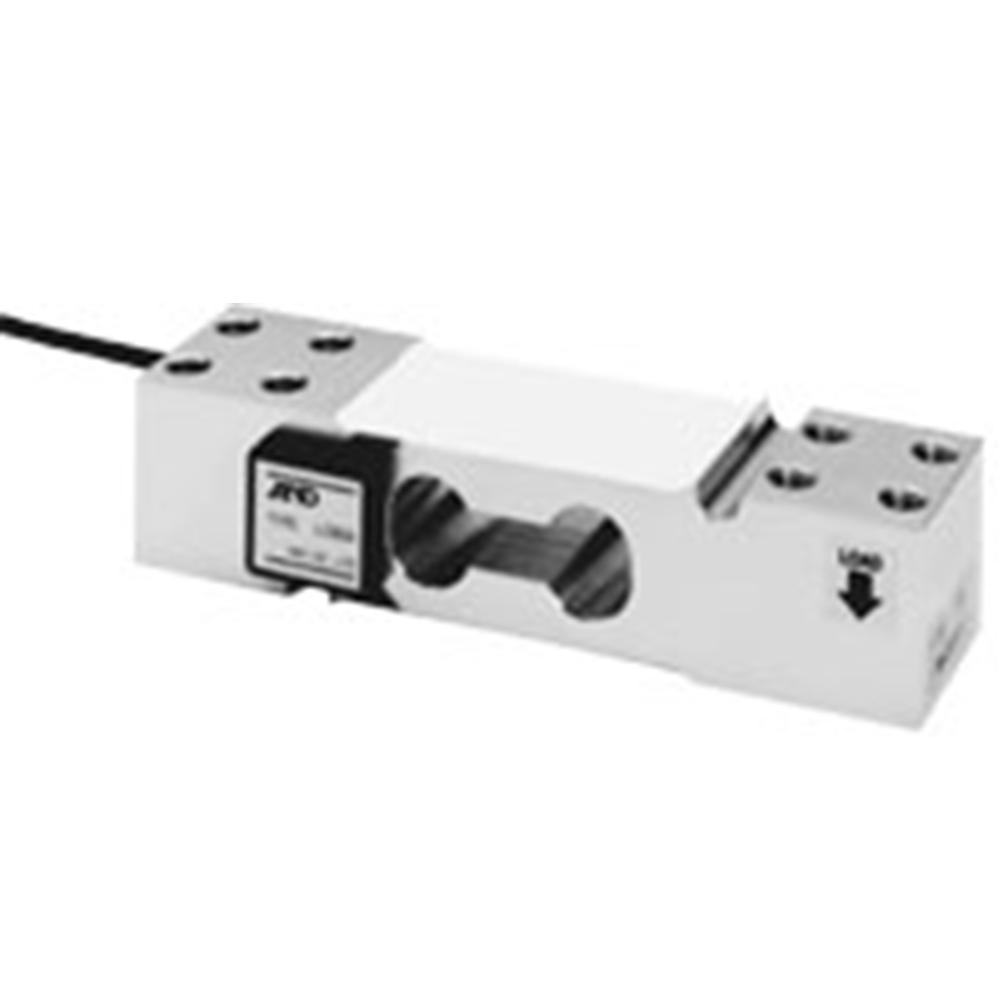

Single Point Aluminium Load Cells
Adjusted for 4 Corners, Useful for Platform Scale, Single Point Compact Load Cells
| Capacity | Model No. | CAD File |
| LCB04M Series | ||
| 60kgf | LCB04K060M | CAD Download |
| 100kgf | LCB04K100M | |
| LCB04L Series | ||
| 150kgf | LCB04K150L | CAD Download |
| 250kgf | LCB04K250L |
Drawing
Specifications
| Rated capacities | 60kgf, 100kgf, 150kgf, 250kgf | |
| Rated output | 2mV/V±10% | |
| Safe overload | 150% of R.C. | |
| Maximum overload | 200% of R.C. | |
| Combined error | 0.02% of R.O. | |
| Repeatability | 0.02% of R.O. | |
| Creep | 0.02% of R.O.(30min) | |
| Maximum excitation voltage | DC15V | |
| Zero balanc | ±5% of R.O. | |
| Input terminal resistance | 420±30Ω | |
| Output terminal resistance | 350±5Ω | |
| Insulation resistance | 2000MΩ(B/E DC50V) | |
| Operating temperature | -10°C to 40°C | |
| Temperature effect | Zero | 0.023% of R.O./10°C |
| Span | 0.014% of R.O./l 0°C | |
| Cable diameter/Length | o 3.5/1.5m | |
| Maximum platform size | 400mm×400mm |
