Portable Data Acquisition System OmnilightII RM1100 Series

Powerful and Dependable RM1100 Excels in both Lab and Field

The Compact RM1100 Portable Data Recorder provides reliable data collection in challenging environments. A large 7-inch wide TFT LCD color touch screen display and refined GUI are ideal for quick Setup, Data Capture and Playback. Coupled with “Real Time”, “Memory” and SD Card recording modes plus up to 1µsec sampling rate, the RM1100 handles the most demanding high speed applications. Recording to SD Card or PC via Ethernet ensures long time continuous recording. Waveform printing is available with optional thermal printer. This AC or battery-operated recorder with rugged casing satisfies your different requirements for Predictive Maintenance, Quality Control, R&D, Automobile Driving Test and remote-controlled data acquisition.

Brochure | Manual Book

Category:

Features

Built Tough

  • Shock and drop resistance withstanding continuous vibration environments such as on-board vehicle tests (MIL-STD-810E 514.5C-1)
  • Wide operating temperatures: – 20℃ to +60℃ (-4°F to +140°F)
  • Compact & rugged case endures dusty and humid environments


Measurement Capability

  • Three measuring modes: “Real-Time” (Paper), “Memory” (Snap-Shot) and “Filing” (SD card storage)
  • High speed recording up to 1µs (1MS/s) to Memory or SD card
  • Long term recording to SD Card, PC or optional thermal printer


Signal Input up to 8 Channels

  • 4 or 8-ch Voltage & Temperature & 4 or 8-point Logic signals


Excellent Portability

  • Long term continuous operation with rechargeable batteries
  • Can also be powered with 12 ~ 24V DC (vehicle) as well as AC
  • Lightweight (approx.1.5kg/ 3.3lbs) with full feature measurement capability


Outstanding Usability

  • Dynamic waveform display on 7″ wide & large LCD
  • Touch-screen with GUI offers easy operation


Shock Resistant Rugged Casing

Small, lightweight instruments can be prone to be slipped off from workbench or dropped during field test and transportation. RM1100’s good built-quality withstands harsh drop test (IEC60068-2-32 equivalent: 1 meter drop onto flat aluminium plate with the unit not being operated).*

Vibration Resistance Ensuring Stable Measurement for Automotive Testing etc.

RM1100 conforms to U.S. standard MIL-STD810E 514.5C-1 that is often required or desired for vehicle tests and other applications.



Flipped Monitor Display

180° Flip Display mode allows RM1100 installed and used upside down with cables hooked up to the bottom. A flipped screen secures flexibility in connecting cables to suit the location where the product is installed. With optional mount (RM11-405), VESA standard display monitor arms, stands and brackets can be chosen for your installation.

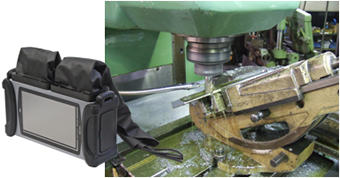

Endurance in Dusty and Humid Conditions

The product design is tested to comply with IEC60529 standard with optional splash-resistant cover (RM11-402) installed for input terminals, power supply and connecting cables. When adequately installed, RM1100 can be used in tough environments with dust or mist in the air.

Wider Operating Temperatures: – 20℃ to +60℃ (-4°F to +140°F)

The extended operating temperature range lets you take RM1100 to perform testing in hot or cold environments, such as in thermostatic chambers, a certain proximity to furnace or other heat generating machineries, warehouses and automobiles in summer and winter. When used in-vehicle, for instance, RM1100 can be booted up to start recording right away. (Test confirms continuous and normal operation at -20℃ and +60℃ and RM1100 kept at -20℃ for 60 min with no power supplied can be turned on and be operated properly.)

* The above specifications and tests don’t guarantee failure-free or breakage-free performance.

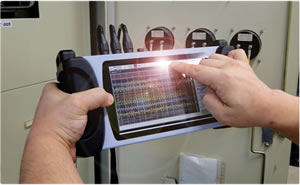

Outstanding Usability

  • Dynamic waveform display on 7″ wide & large LCD
  • Touch-screen with GUI offers easy operation

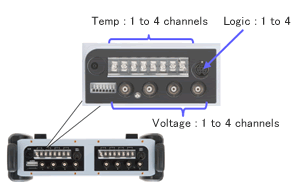

Signal Input up to 8 Channel

  • RM1102 : Max 8 channels (voltage/ temperature) + 8 (logic) Screw terminals for thermocouples and insulated BNC terminals for voltage allow easy connection.

Specifications

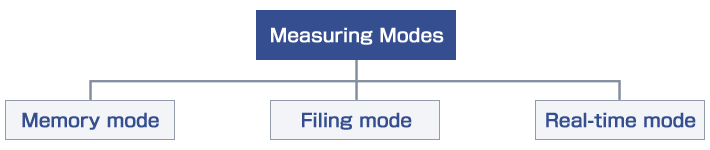

Multiple Measuring Modes

Select from 3 measuring modes—’Memory Mode’ for saving fast events, ‘Filing Mode’ for saving data for long periods of time on an SD card, and ‘Real-time Mode’ for printing out waveforms using an external printer.

  • Memory mode

Data is saved to built-in memory (2M data/channel) at a maximum speed of 1µs (1M samples/second). Measured data is displayed, printed with an external printer, or saved on a SD card.


  • Filing mode

Filing mode provides long-time data saving to an SD card. Record data at fast sampling rates up to 1μs (1M samples/sec) with 1 channel or 10μs (100K samples/sec) simultaneously with eight (8) activated channels. This feature is excellent for high speed and long term continuous recording as well as post-measurement analysis.




  • Real-time mode

Real-time recording mode allows acquired data to be sent directly to an external printer. Waveforms are shown on the color display screen using graphical pen tips. The chart paper speed may actively changed during recording using the touch screen.



Specifications:

  • Chart speed : 10mm/sec to 1mm/min
  • Recording Division : 1, 2, 4 divisions
  • Printing Density : 8dots/mm (time axis; horizontal) 8dots/mm (waveform axis : vertical)
