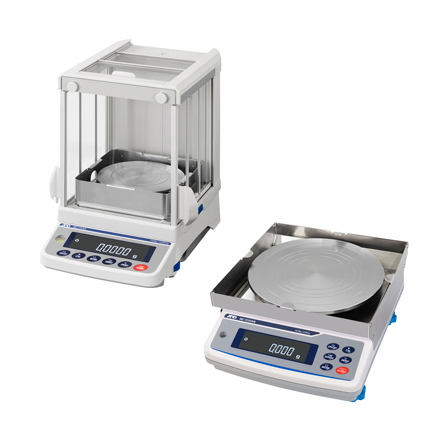

MC-A/MC-M Series

Mass Comparator
Enhanced Performance. Unchanged Value.

Brochure
Manual for MC-A
Manual for MC-M
Setup manual for MC-A
Setup manual for MC-M

Features

  • Auto-centering pans available for consistent accuracy through automatic correction of eccentricity errors
  • Extra decimal place enabling accurate tracking of small weight changes in automated systems with heavy tare weights
  • Impact Shock Detection (ISD) for reliable automation with alerts and logging of high-impact events
  • Cushioning under the weighing pan to mitigate impact shocks significantly
  • Tare memory function that saves the tare value in non-volatile memory
  • AD-Just – Automatic self-sensitivity adjustment using the internal weight
  • Minimum weight setting and alert functions
  • Selectable response characteristics for trading weighing speed for higher display stability or vice versa
  • User access control (UAC) that password-protects the balance from misuse
  • GLP/GMP/GCP/ISO compliant output to meet documentation requirements
  • Universal Flexi Coms (UFC) to customize printout content and layout*1
  • Gross/Net/Tare output
  • Data memory function to save weighing results, calibration results and unit masses to be used in counting mode in the device itself
  • Counting mode with the Automatic Counting Accuracy Improvement (ACAI) function
  • Percent mode function for target weighing or checking sample variation
  • Animal weighing (average & hold) function for weighing moving objects
  • Statistical calculation function (SCF) to facilitate the analysis of measurements
  • Five-level comparator function with buzzer
  • Auto power ON and OFF functions
  • Underhook for weighing a magnetic material as well as measuring density
  • Easy-to-adjust leveling feet with thumbwheels (MC-A)
  • IP65 dust and waterproof (MC-M)
*1 For editing and sending UFC setting commands, download WinCT-UFC here

External Input/Output

  • RS-232C interface
  • Quick/bi-directional USB interface*2
  • Comparator relay output (optional)
  • External key input interface (optional)
  • Analog (0-1/0.2-1 V) output interface (optional)
  • Ethernet (TCP/IP) interface (optional)
  • USB host interface (optional for the MC-A series)
  • External IR switch (optional for the MC-A series)
  • Bluetooth® interface (optional)

Options

For the MC-A series
  • GXA-03*2 : 2nd RS-232C interface
  • GXA-04*2 : Comparator relay output/buzzer/external key input interface
  • GXA-06*2 : Analog (0-1/0.2-1 V) output interface
  • FXi-08*2 : Ethernet (TCP/IP) interface
  • GXA-09*2*3 : Built-in rechargeable battery
  • GXA-10*4 : Large glass breeze break
  • GXA-12 : Animal weighing pan
  • GXA-17*2 : Large glass breeze break with built-in fanless ionizer and external IR switch
  • GXA-23-PRINT*2 : External key input interface + AX-SW137-PRINT foot switch
  • GXA-23-REZERO*2 : External key input interface + AX-SW137-REZERO foot switch
  • GXA-23-PLUG*2 : External key input interface + AX-T-314A-S plug
  • GXA-24A*2 : USB host interface
  • GXA-25*2 : Fanless ionizer with Quick Ion® technology
  • GXA-26*2 : External IR switch
  • GXA-27*2 : Bluetooth® interface
*2 Only one of GXA-03, GXA-04, GXA-06, FXi-08, GXA-09, GXA-17, GXA-23-PRINT/REZERO/PLUG, GXA-24A, GXA-25, GXA-26, or GXA-27 can be installed. *3 Factory-installed/dealer option
*4 Also provided as standard.
For the MC-M series
  • GXM-04*5*6 : Comparator relay output/buzzer/RS-232C/external key input interface
  • GXM-06*5*6 : Analog (0-1/0.2-1 V) output/RS-232C interface
  • GXM-08*5*6 : Ethernet (TCP/IP) interface
  • GXK-012 : Animal weighing pan
  • GXM-27*5 : Bluetooth® interface
*5 Only one of GXM-04, GXM-06, GXM-08, GXM-27, or the standard (RS-232C and USB) interfaces can be installed.
*6 The MC-M series is not IP65 with GXM-04, GXM-06, or GXM-08.

Accessories

  • AD-1603*7 : Calibration masses
  • AD-1682 : Rechargeable battery unit
  • AD-1683A*8 : Static eliminator
  • AD-1684A : Electrostatic fieldmeter
  • AD-1687 : Weighing environment logger
  • AD-1688 : Weighing data logger
  • AD-1689 : Tweezers for calibration weight
  • AD-8129TH : Compact printer
  • AD-8526 : RS-232C/Ethernet (TCP/IP) converter
  • AD-8541-PC : Bluetooth® dongle for PC
  • AD-8541-SCALE : RS-232C/Bluetooth® converter
  • AD-8920A : Remote display
  • AD-8922A : Remote controller
  • AX-073007197-S : Display cover for the MC-M series (5 pcs)
  • AX-GXA-31 : Display cover for the MC-A series (5 pcs)
  • AX-MC10K/30KPAN : Auto-centering pan for the MC-M series
  • AX-MC1104APAN : Auto-centering pan for the MC-1104A
  • AX-MC6203APAN : Auto-centering pan for the MC-6203A
  • AX-USB-9P : RS-232C/USB converter with cable
*7 Aailable in weights from 1 mg to 20 kg, in OIML classes E2, F1, and F2.
*8 For in-line use in automated systems, the AD-1683 (without A) is recommended.

Specifications

*Under good environmental conditions using the auto-centering pan, or with consistent positioning in automated systems.
