BrochureFeatures
- 0.01 mm display resolution (display can switch between 0.01/0.1mm)
- Equipped with scan mode for measuring minimum thickness range

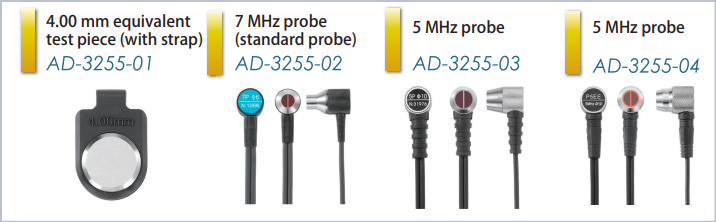

- Three types of probes can be used to suit your needs
- AD-3255-02(Standard probe) Measurement range from 0.8 to 200.0mm
- AD-3255-03(Option ) Measurement range from 1.0 to 300.0mm
- AD-3255-04(Option ) Measurement range from 2.0 to 300.0mm
- Comes with 4 mm equivalent test piece for Zero point calibration for probe.
- The thickness of an object excluding paints and coatings can be measured with Echo-echo mode using AD-3255-04 probe.
- (Measurement range from 4.0～30.0mm)
- Sound velocity calibration is possible
- (Single point and two-point calibration as well as numerical input calibration are possible, configuration and calibration data are recorded)
- Coupling status displayed for contact status confirmation
- Backlight for use in dark environments
