Features
- Stainless steel housing ideal for using in the food/chemical industry
- Rocking absorption type
- Designed for tanks and hoppers
- Compression typed

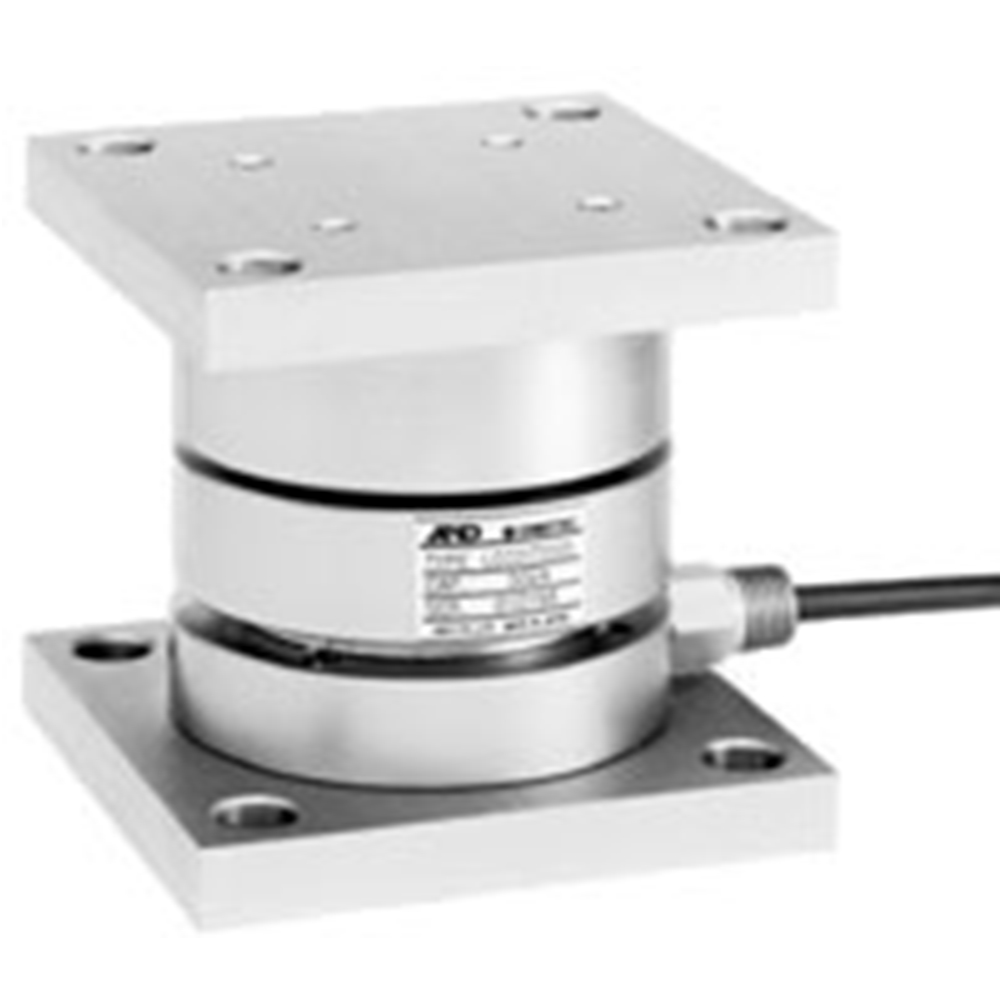

LCC07
Stainless Steel Load Cells
For Tanks and Hopper Applications
| Capacity | Model No. | CAD File |
| 500kgf | LCC07K500 | CAD Download |
| 1tf | LCC07T001 | |
| 2tf | LCC07T002 | |
| 3tf | LCC07T003 | |
| 5tf | LCC07T005 |
Brochure |
Drawing
Specifications
| Rated capacities | 500kgf, 1tf, 2tf, 3tf, 5tf | |
| Rated output | 2rnV/V±0.1 % | |
| Maximum Safe overload | 150% of R.C. | |
| Combined error | 0.03% of R.O. | |
| Recommended excitation voltage | DC12V | |
| Maximum excitation voltage | DC15V | |
| Zero balance | ±1% of R.O. | |
| Input terminal resistance | 780±20Ω | |
| Output terminal resistance | 700±10Ω | |
| Insulation resistance | Greater than 500MΩ/DC50V | |
| Operating temperature | -10°C to 40°C | |
| Temperature effect | Zero | 0.04% of R.O/10°C |
| Span | 0.014% of Load/10°CTyp. | |
| Cable diameter/Length | φ 5.6 / 5m | |
| Dustproof/Waterproof | IP67 |
