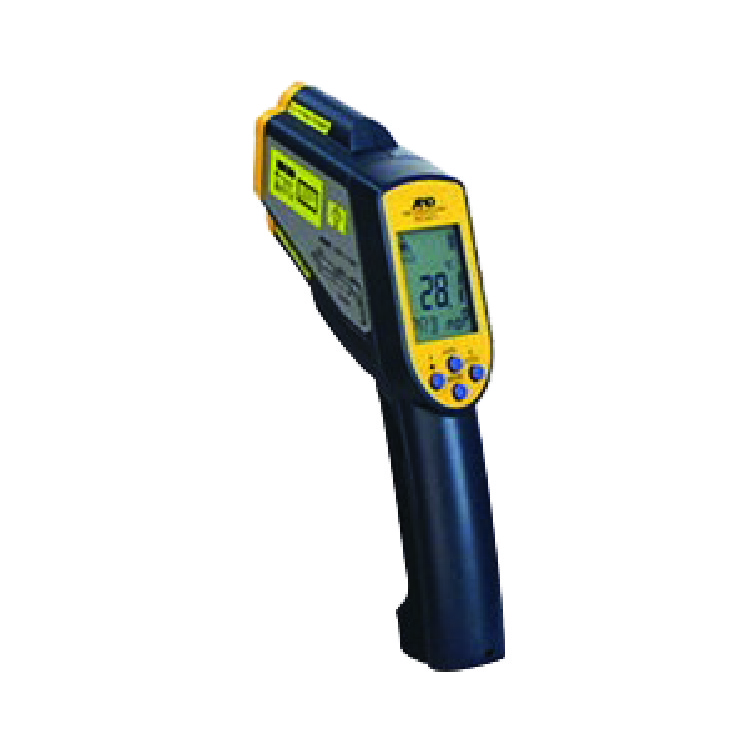

AD-5616
Infrared Radiation Thermometer with Laser Marker
Features
- Backlight with laser marker
- Changeable emissivity setting
- With upper / lower temperature alarm function
- Max, min, average temperature, temperature difference display available, continuous measurement function include
Specifications
| |
|---|
| Temperature measurement range | -60 to +1500ºC |
| Response speed | About 1 second (90%) |
| Upper/lower limit alarm | -60 to +1500°C (volume about 60 dB, distance 15 cm) |
| Minimum display | 01ºC (-60 to +999.9ºC), 1ºC (other measurement range) |
| Temperature measurement accuracy | ± 2% rdg or ± 2°C whichever is larger (-33 to + 1500°C), -60 to -34°C is not guaranteed accuracy |
| Emissivity setting range | Can be set (changed) in 0.01 increments from 0.10 to 1.00 (factory setting 0.95) |
| Upper/lower limit alarm | Can be set from -60 to + 1500°C (volume about 60 dB, distance 15 cm) |
| Power supply | 12 hours continuous operation using Alkaline Battery |
| External dimensions | 47 (W) x 197 (H) x 203 (D) mm |
