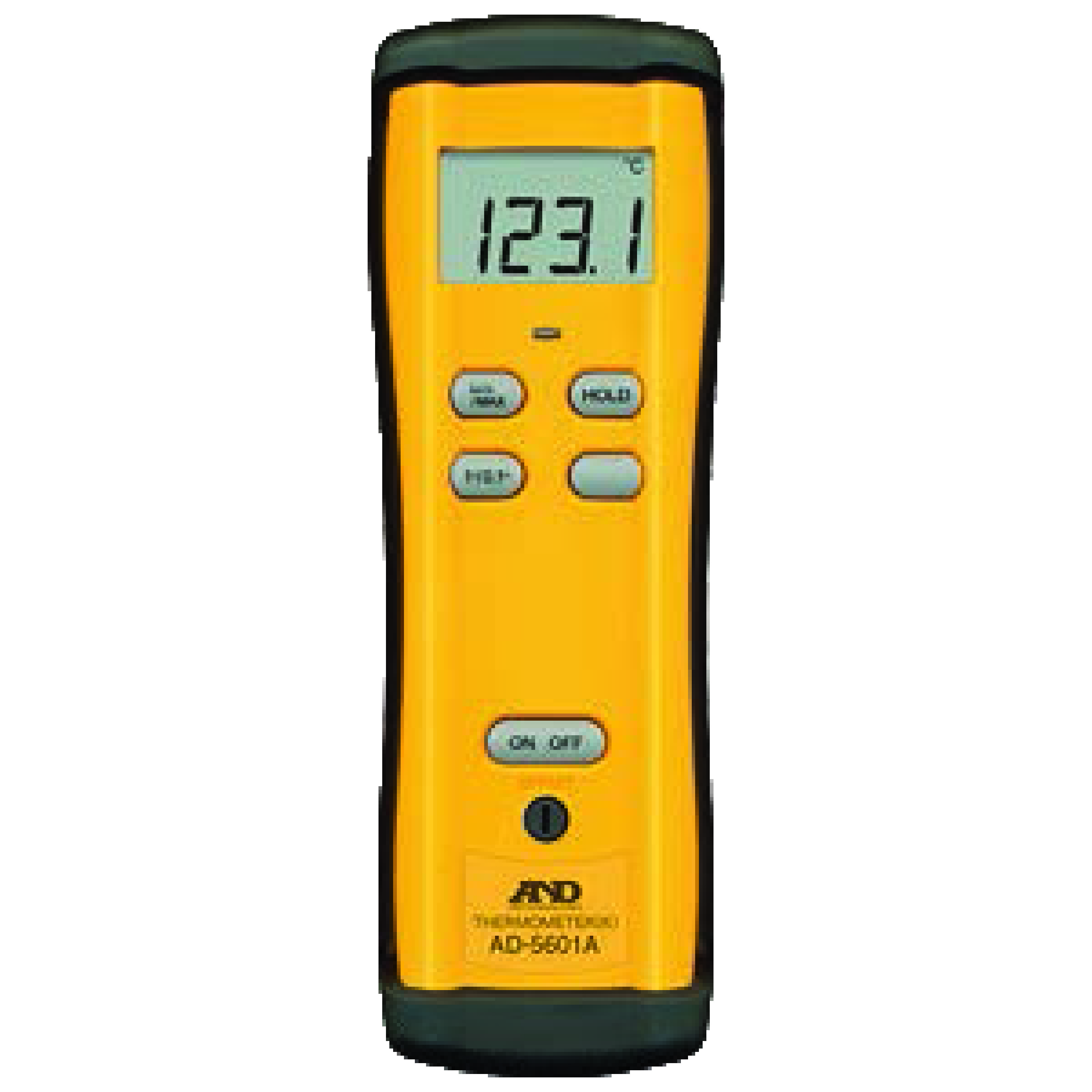

AD-5601A
Thermocouple Thermometer (K Type)
Features
- One K type thermocouple temperature sensor is included
- Notice of unconnected or disconnected temperature sensor with LED lamp
- Data hold, max/min value memory function
- Offset adjustable
Specifications
| |
|---|
| Main unit display range | -50 to + 1300°C |
| Minimum body display | 0.1°C (-50°C to +199.9°C), 1°C (-50°C to +1300°C) |
| Offset adjustment | Adjustable with offset adjustment volume |
| Minimum display | 0.1ºC, Humidity: 1% RH |
| Temperature display interval | 2.5 times / sec |
| Power supply | 6F22 type (006P type) 9V dry battery 1 piece Battery life: About 200 hours (using alkaline batteries) |
| External dimension | 62(W) x 184(H) x 35(D) mm (not including protective case) |
| Body mass | Approximately 165 g (excluding protective case) |
| Accessories | K thermocouple sensor (equivalent to AD-1214) 1 piece, protective case, monitor battery, instruction manual |
