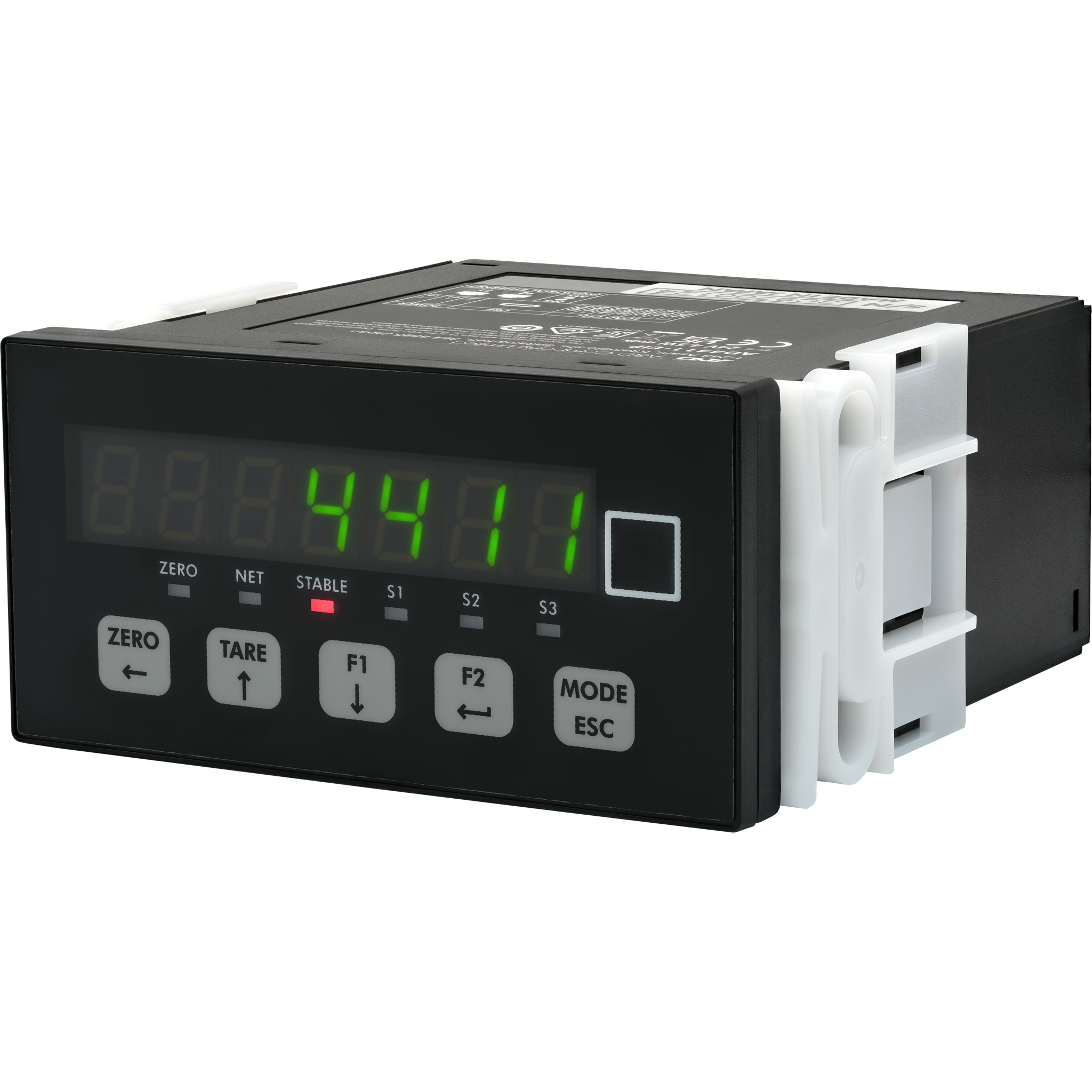

AD-4411

Weighing Indicators for Ethernet Based Field Networks

The AD-4411 is a weighing indicator that can convert signals from strain gauges load cells and connect them to an Ethernet-based field networks.

Daisy-chain connection is possible without a switching hub thanks to two communication ports

AD-4411-EIP (EtherNet/IP)
AD-4411-PRT (PROFINET)
AD-4411- ECT (EtherCAT)

Brochure.pdf | Manual.pdf
Manual simplified.pdf

Category:

Features

  • High speed A/D signal conversion, 1200 times/s
  • HPDF – High Performance Digital Filter Greatly reduces the cost and maintenance of anti-vibration equipment
  • Rear USB port for easier update of Weighing Indicator settings.
  • DIN 96 x 48 compact size
  • Easy load cell connection type setting (4/6 wires) Saves time spent on connecting load cells.

Settings

  • Can import/save internal settings to PC, and then export the same settings to other units.
  • Monitors measured values and check the effect of HPDF as a graph in real time.
