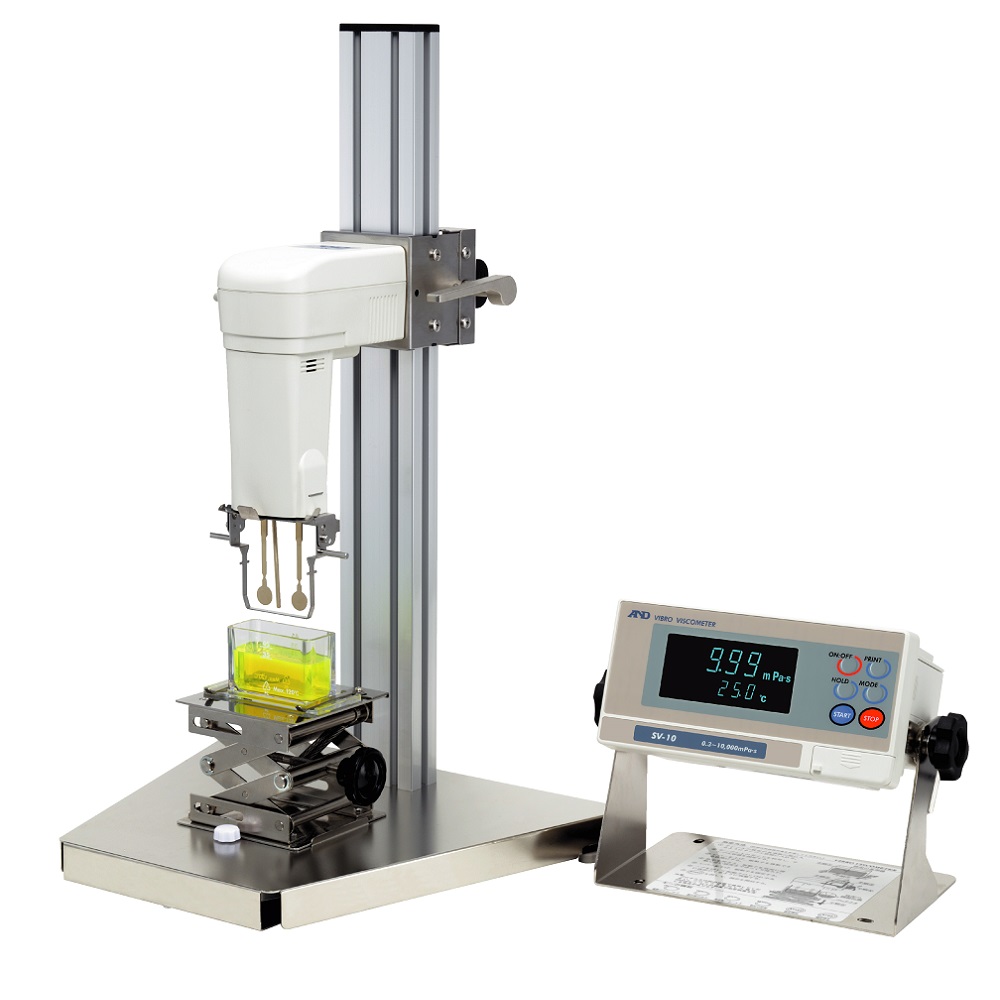

SV Series

Tuning Fork Vibro Viscometers

Viscometry Revolution!

Wide-range, continuous measurement without replacing the sensor plates
Simultaneous measurements of temperature and viscosity
Windows Communication Tools WinCT-Viscosity

Brochure | Manual Book
Manual Book Additional Information
User’s Handbook
Tuning fork vibro method as a Japan industrial standard
Introduction Video
How to clean SV Viscometer

Category: Viscometer

Features

Wide-range, continuous measurement without replacing the sensor plates
Simultaneous measurements of temperature and viscosity
Windows Communication Tools WinCT-Viscosity
Very quick measurement
High repeatability
Low viscosity measurement
Simplified calibration function (SV-10)
Easy cleaning
Measurement of Non-Newtonian, foaming, flowing, sol and gel sample

External Input / Output

RS-232C interface

Accessories


Item	Description	RV-10000A RV-10000	SV-10	SV-100	SV-1A	SV-10A	SV-100A
AX-SV-33	Sample cup, 45 ml, polycarbonate × 10	●	●	●	●	●	●
AX-SV-34	Small sample cup, 10 ml, with cover, polycarbonate × 10	●	●	●	●	●	●
AX-SV-35	Glass sample cup, 13 ml × 1	●	●	●	●	●	●
AX-SV-36	Positioning stopper × 1	●	●	●	●	●	●
AX-SV-37	Water jacket × 1, small sample cup with cover × 4	●	●	●	●	●	●
AX-SV-38	Storage container, 60 ml, glass × 10	●	●	●	●	●	●
AX-SV-39	Storage container, 120 ml, plastic × 20	●	●	●	●	●	●
AX-SV-42	Analog voltage output (0 to 1V)	●	●	●	●	●	●
AX-SV-43	Extension cable (5 m) to connect the main unit and the display unit	●	●	●	●	●	●
AX-SV-51	Stand set with X-Y-Z stage	●	●	●	●	●	●
AX-SV-52	X-Y-Z stage × 1	●	●	●	●	●	●
AX-SV-53-EX	Software set	●	●	●	●	●	●
	(WinCT-Viscosity × 1, 25P-9P RS-232C cable × 1,
	serial/USB converter × 1)
AX-SV-54	Cup set for RV-10000/RV-10000A/SV-10A/100A	●	●	●	●	●	●
	Sample cup:
	45 ml, polycarbonate × 5
	10 ml, with cover, polycarbonate × 5
	13 ml, glass × 2
	Glass sample cup holder, stainless steel × 1
	Water jacket × 1
AX-SV-55	Cup Set for SV-1A				●
	Sample cup:
	45 ml, polycarbonate × 5
	2 ml, with lid, polycarbonate × 10
	2 ml, glass × 10
	2ml sample cup holder, polycarbonate:
	Transparent × 3
	Black × 2
	2 ml sample cup stand × 1
	Water jacket × 1
AX-SV-56-1	2 ml sample cup holder, polycarbonate, transparent × 5				●
AX-SV-56-2	2 ml sample cup holder, polycarbonate, black × 5				●
AX-SV-57	2 ml sample cup stand × 2				●
AX-SV-58	Sample cup, 2 ml, with lid, polycarbonate × 100				●
AX-SV-59	Glass sample cup, 2 ml × 5				●
	2 ml sample cup stand × 1
AX-SV-60	Square sample cup, 2 ml, glass × 2				●
AX-SV-62-1	Dust cover for the sensor and stand units	●	●	●	●	●	●
AX-SV-62-2	Dust cover for the display unit and controller*	●	●	●	●	●	●
AX-USB-25P-EX	Serial/USB converter	●	●	●	●	●	●
AD-8121B	Compact printer	●	●	●	●	●	●
AD-1682	Rechargeable battery	●	●	●	●	●	●
AD-1671A	Anti-vibration table for viscometers/rheometers	●	●	●	●	●	●
AX-SV-31-2.5	Standard liquid for calibration JS2.5 (500 ml)	●	●		●	●
AX-SV-31-5	Standard liquid for calibration JS5 (500 ml)	●	●		●	●
AX-SV-31-10	Standard liquid for calibration JS10 (500 ml)	●	●		●	●
AX-SV-31-20	Standard liquid for calibration JS20 (500 ml)	●	●		●	●
AX-SV-31-50	Standard liquid for calibration JS50 (500 ml)	●	●		●	●
AX-SV-31-100	Standard liquid for calibration JS100 (500 ml)	●	●		●	●
AX-SV-31-200	Standard liquid for calibration JS200 (500 ml)	●	●			●
AX-SV-31-500	Standard liquid for calibration JS500 (500 ml)	●	●			●
AX-SV-31-1000	Standard liquid for calibration JS1000 (500 ml)	●	●			●
AX-SV-31-2000	Standard liquid for calibration JS2000 (500 ml)	●		●		●
AX-SV-31-14000	Standard Liquid for Calibration JS14000 (500 ml)	●		●			●
AX-SV-31-160000	Standard Liquid for Calibration JS160000 (500 ml)			●			●

Specifications


Model	SV-10	SV-100
Measurement Method	Tuning Fork Vibration Method (Natural Frequency at 30Hz)
Viscosity Measurement Unit	mPa·s, Pa·s, cP, P	Pa·s, P
Viscosity Measurement Rang	0.3~10000mPa·s	1~100Pa·s
Repeatability	1% of Reading (S.D., 20~30°C, No condensation)
Minimum Sample Amount	10ml~ (with Optional Small Sample Cup)
Temperature Measurement	0~160°C / 0.1°C(32~320°F/0.1°F)
Display	Vacuum Fluorescent Display (VFD)
Power Supply	AC Adaptor (Approx. 14VA)
External Dimensions / Mass	Main Unit (with Stand): 332 (W)×314 (D)×536(H) mm / Approx. 5.0 kg
	Display Unit: 238 (W)×132 (D)×170(H) mm / Approx. 1.3 kg
Standard Accessories	Sample Cup (45 ml, Polycarbonate × 4 pcs), CD-ROM (WinCT-Viscosity),
	AC Adaptor, Connection Cable (1.5m), RS-232C Cable (25P-9P)
