Features
- Ultra Compact Design –Just 13cm in length
- Adjusted for 4 corner loads
- Moisture Proof
- Wide Model Selection -8 Models

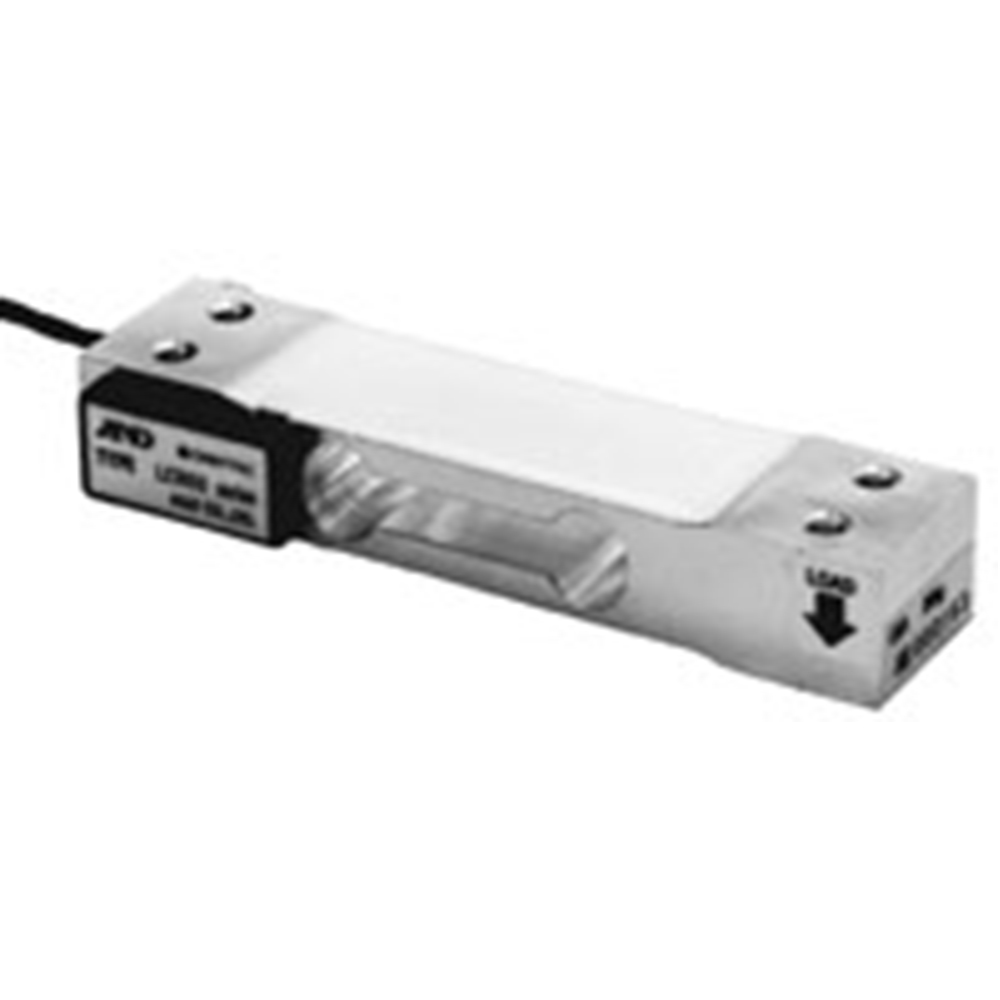

LCB03
Single Point Aluminium Load Cells
Compact Design for Bench Scale, Single Point Compact Load Cells
| Capacity | Model No. | CAD File |
| LCB03M Series | ||
| 3kgf | LCB03K003M | CAD Download |
| 6kgf | LCB03K006M | |
| 10kgf | LCB03K010M | |
| 15kgf | LCB03K015M | |
| 20kgf | LCB03K020M | |
| LCB03L Series | ||
| 25kgf | LCB03K025L | CAD Download |
| 30kgf | LCB03K030L | |
| 35kgf | LCB03K035L |
Drawing
Specifications
| Rated capacities | 3kgf, 6kgf, 10kgf, 15kfg, 20kfg,25kgf, 30kgf, 35kgf | |
| Rated output | 2mV/V±10% | |
| Safe overload | 150% of R.C. | |
| Maximum overload | 200% of R.C. | |
| Combined error | 0.02% of R.O. | |
| Repeatability | 0.02% of R.O. | |
| Creep | 0.02% of R.O.(30min) | |
| Maximum excitation voltage | DC15V | |
| Zero balance | ±5% of R.O. | |
| Input terminal resistance | 420±30Ω | |
| Output terminal resistance | 350±5Ω | |
| Insulation resistance | Greater than 2000MΩ | |
| Operating temperature | -10°C to 40°C | |
| Temperature effect | Zero | 0.023% of R.O./10°C |
| Span | 0.014% of R.O./l 0°C | |
| Cable diameter/Length | o 3.5/0.4m |
