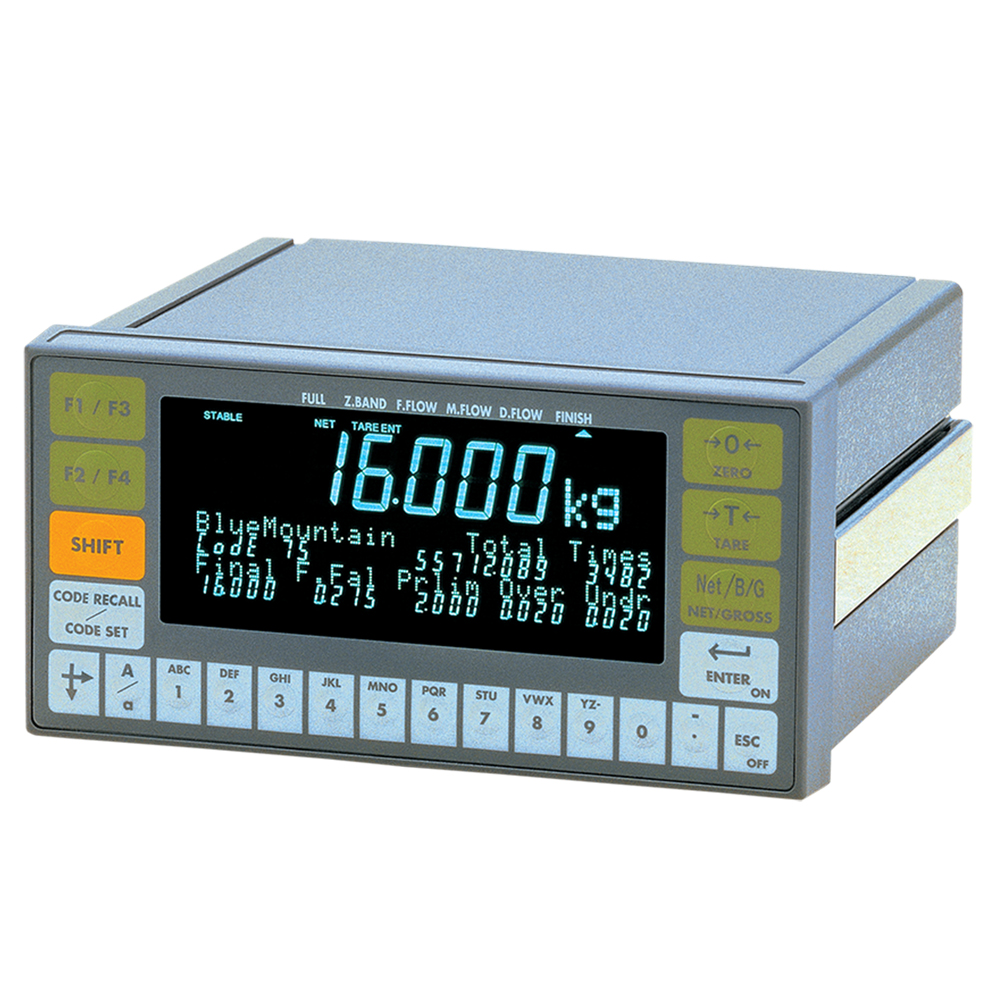

AD-4402

High Performance Weighing/Batching

Performance many operations, from batch weighing to field bus networking applications



  • 100 times/sec. High speed sampling.
  • High display resolution to 16,000 counts.
  • Up to 1 million counts of A/D resolution.
  • Large and easy to see blue Vacuum Fluorescent Display (VFD).
  • Uses a ten – key pad and function button that are designed for ease of operation and understanding.

BrochureManual Book



Download file

The GSD file is the AD4402-22 device description file which is used for setting the parameters of the AD4402-22 with the PROFIBUS class 1 master.

Category:

Features

  • 100 times/sec. High speed sampling.
  • High display resolution to 16,000 counts.
  • Up to 1 million counts of A/D resolution.
  • Large and easy to see blue Vacuum Fluorescent Display (VFD).
  • Uses a ten – key pad and function button that are designed for ease of operation and understanding.
  • The main display has a 7 – digit VFD with 18mm tall characters.
  • The sub display has a total of 54 5mm – tall dot matrix characters and displays the values and error comments.
  • Pre-programmed with multiple sequences and functions for filling machines, simple mixing machines and a weight-checker and other applications.
  • Stores 100 data for raw materials and 100 data for mixing codes.
  • RS-485 Serial Output (Current Loop) standard feature allows you to link up to 32 units to the display.
  • The Monitor Function shows each operating interface and provides a confirmation on the display.
  • The compact body meets DIN requirements, while minimizing the depth of the indicator to135mm.
  • With the proper optional interface, the AD-4402 is compatible with CC-Link, Device Net, PROFIBUS.
  • Standard Modbus function available.


Options

  • OP-01 : Parallel BCD Output
  • OP-02 : Relay Output
  • OP-03 : RS-422/RS-485 I/O
  • OP-04 : RS-232C I/O
  • OP-05 : Parallel I/O
  • OP-07 : Analog Output
  • OP-10 : Stainless Steel Mounting Panel to replace AD-4325A
  • OP-20 : CC Link Interface
  • OP-21 : Device Net Interface
  • OP-22 : PROFIBUS Interface
