Showing 37–48 of 176 results

View

  • AD-4408C

    A Weighing Indicator Designed for CC-Link

    High-Performance Digital Filtered Weighing Indicator Designed for CC-Link



    • Easy-to-use weighing indicator specifically for CC-Link.
    • Realizes both an extremely fast response speed and stable weighing in high vibration environments.
    • Enhances the performance of weighing devices that structurally have a source of vibration.
    • Wide zero adjustment range.

    Brochure | Manual Book
    HPDF brochure
     Demonstration of the high-performance digital filtering function

  •

    AD-4410

    Vibration-Resistant Weighing Indicator

    Powerful Vibration Cancelling Feature

    The High-Performance Digital Filter provides high accuracy/high speed weighing in environments with vibration problems. The AD-4410 greatly reduces the costs and maintenance required for anti-vibration equipment since it copes with vibrations without requiring many mechanical measures.

    Brochure | Manual Book
    Manual for OP-07 Analog output (4 – 20 mA)
     Checkweigher using peak hold function 1
     Checkweigher using peak hold function 2
     Average holding function

  •

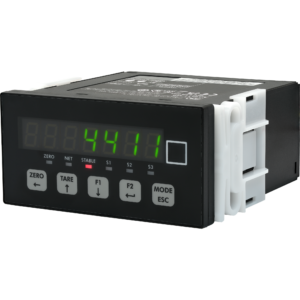

    AD-4411

    Weighing Indicators for Ethernet Based Field Networks

    The AD-4411 is a weighing indicator that can convert signals from strain gauges load cells and connect them to an Ethernet-based field networks.

    Daisy-chain connection is possible without a switching hub thanks to two communication ports

    AD-4411-EIP (EtherNet/IP)
    AD-4411-PRT (PROFINET)
    AD-4411- ECT (EtherCAT)

    Brochure.pdf | Manual.pdf
    Manual simplified.pdf

  •

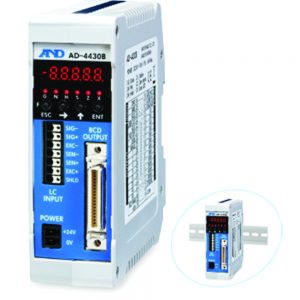

    AD-4430B

    Ultra Compact Weighing Module

    High Speed Sampling – 1000 times per second



    • DIN rail mounted type ideal for insertion into control board
    • Powerful vibration-cancelling function (High Performance Digital Filter)
    • High speed sampling (1000 times per second) – High accuracy

    Brochure | Instruction Manual
    Simplified Manual

  •

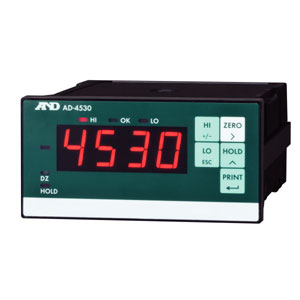

    AD-4530

    Digital Indicator

    Suitable for Measurement of Load, Pressure, Torque, Tension and More



    • Low cost digital indicator for various applications. Suitable for measurement of load, pressure, torque, tension
      and more at an affordable price.
    • Digital Zero (DZ) stores zero data at any measurement point. This function can also be used to tare weight.
    • Measurement can simply be restarted when it was interrupted by a loss of power.

    Brochure | Manual Book
    Simplified Manual

  •

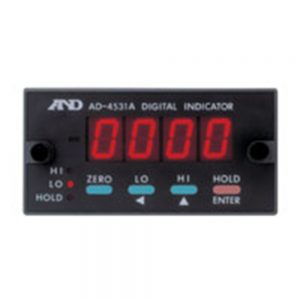

    AD-4531A

    Multi purpose Digital Indicator

    High Performance digital Indicator for strain Gauge Sensors:
    Weight, Pressure, Displacement, Torque, Tension and Acceleration applications



    • Digitally processed signals with 16 times/s A/D conversion
    • Peak hold and hold capability
    • “Hold Mode” data stored digitally to prevent drooping on display and analog output
    • Comparator function and output.
    • Analog output with scaling and offset functions

    Brochure | Manual Book

  •

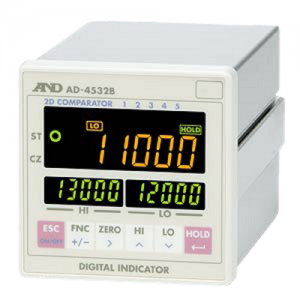

    AD-4532B

    Digital Indicator for Strain Gauge Sensors

    Super high-speed sampling at 2000 times/sec.
    Ideal for measuring the dynamic phenomena of
    loads, pressure, torque, tension, etc.



    • High-speed A/D*1 and D/A*2 conversion function at 2000 times/sec.
    • Calibration without an actual load
    • The digital span calibration function makes it possible to perform a calibration by entering the rated output (mV/V) of the sensor using the numeric keys. This function is useful when an actual load cannot be applied.
    • Latching function

    Brochure | Manual Book
     AD-4532B Introduction

  •

    AD-4541-V/I

    Analog signal conditioner

    Ultra-slim analog signal conditioners



    Analog signal conditioners can convert the signal received from a bridge type sensor such as a load cell, pressure sensor, strain gauge, etc. to a voltage output (AD-4541-V / -2V to +2V) or a current output (AD-4541-I / 4-20mA).

    Brochure | Manual Book

  •

    AD-4961

    Checkweigher

    With a newly developed digital load cell and an ultra-high speed processing module, high level precision has been realized.



    Unique Modular Design

    AD-4961 consists of four units, an infeed conveyor unit, a weighing conveyor unit, a control unit and a base unit, allowing fast and simple assembly. In the case of system shutdown, you do not need to wait for a service engineer to respond to the issue.
    Just simply replace the unresponsive module by yourself, so that you can shorten system downtime and maximize production efficiency. The Direct Gear Drive Mechanism allows you to replace a conveyor simply and easily. The entire system is washable with a stainless steel construction and hygienic design.

    Brochure |  Conveyor Belt Replacement
     Assembly Guide |  Gear Box Replacement
     Gear Replacement |  Side Grip Conveyors

  •

    AD-4971

    Metal Detector

    Capable of detecting metal contaminants in products, this system contributes to the delivery of safe products to customers.



    Modbus Communication

    Equipped with Modbus RTU/Modbus TCP as standard. With Modbus communication, seamless connection can be easily achieved. Operations such as stopping and starting weighing, collecting data and changing product can all be set from an external device.
    Brochure | Users’ Handbook

  •

    AD-4976

    Metal Detector

    Capable of detecting metal contaminants in products, this system contributes to the delivery of safe products to customers.



    Modular design

    AD-4976 consists of three modules: sensor head, conveyor, and frame unit. Each of these are also separately available for customization to meet various type of requirements. As a factory option, the sensor head is available in 90 degrees rotated position so that a tall product can be inspected.

    Modbus Communication

    Equipped with Modbus RTU/Modbus TCP as standard. With Modbus communication, seamless connection can be easily achieved. Operations such as stopping and starting weighing, collecting data and changing product can all be set from an external device.

    Brochure

  •

    AD-4991 Series

    X-ray Inspection Systems

    With its compact design, and cutting-edge X-ray technology, the ProteX Series X-ray inspection system provides next level quality assurance.



    • Most compact system on the market.
    • Simple GUI with a 15” color touchscreen provides for easy operation
    • Quick and stable product setup



    BrochureUser’s Handbook
